Pub/Sub pattern architecture

This article explains the fundamental concepts behind the architecture of the Pub/Sub pattern. We’ll cover the key components involved in any Pub/Sub system, understand the characteristics of Pub/Sub architecture, and discuss its benefits.

Copy link to clipboard

What is Pub/Sub?

Pub/Sub (or Publish/Subscribe) is an architectural design pattern used in distributed systems for asynchronous communication between different components or services. Although Publish/Subscribe is based on earlier design patterns like message queuing and event brokers, it is more flexible and scalable. The key to this is the fact that Pub/Sub enables the movement of messages between different components of the system without the components being aware of each other’s identity (they are decoupled).

Learn more about:

Copy link to clipboard

What is the architecture of the Pub/Sub pattern and how does it work?

Pub/Sub provides a framework for exchanging messages between publishers (components that create and send messages) and subscribers (components that receive and consume messages). Note that publishers don’t send messages to specific subscribers in a point-to-point manner. Instead, an intermediary is used - a Pub/Sub message broker.

The message broker groups messages into entities named channels (or topics). When a publisher sends a message on a channel, the Pub/Sub broker routes a copy of the message to each of the components who have subscribed to the respective channel.

The diagram below shows the high-level architecture of a Pub/Sub system:

The pub/sub pattern

It’s worth pointing out a few things:

  • Pub/Sub is a flexible messaging pattern. In theory, you can have any number of publishers sending data to topics/channels. On the other end, you could have any number of subscribers. Note that a component can be both a publisher and a subscriber - think, for example, of chat apps, where you both send (publish) and receive (subscribe to) chat messages.

  • Publishers and subscribers are completely decoupled by the message broker. Publishers send messages without worrying about who or how many subscribers will receive them. Similarly, subscribers consume messages without being concerned about who sent them.

  • Subscribers don’t have to poll to see if any new data is available. Instead, they are notified as soon as it becomes available.

  • The message broker is responsible for maintaining a list of subscribers for each channel, and ensuring that messages are delivered to all interested subscribers.

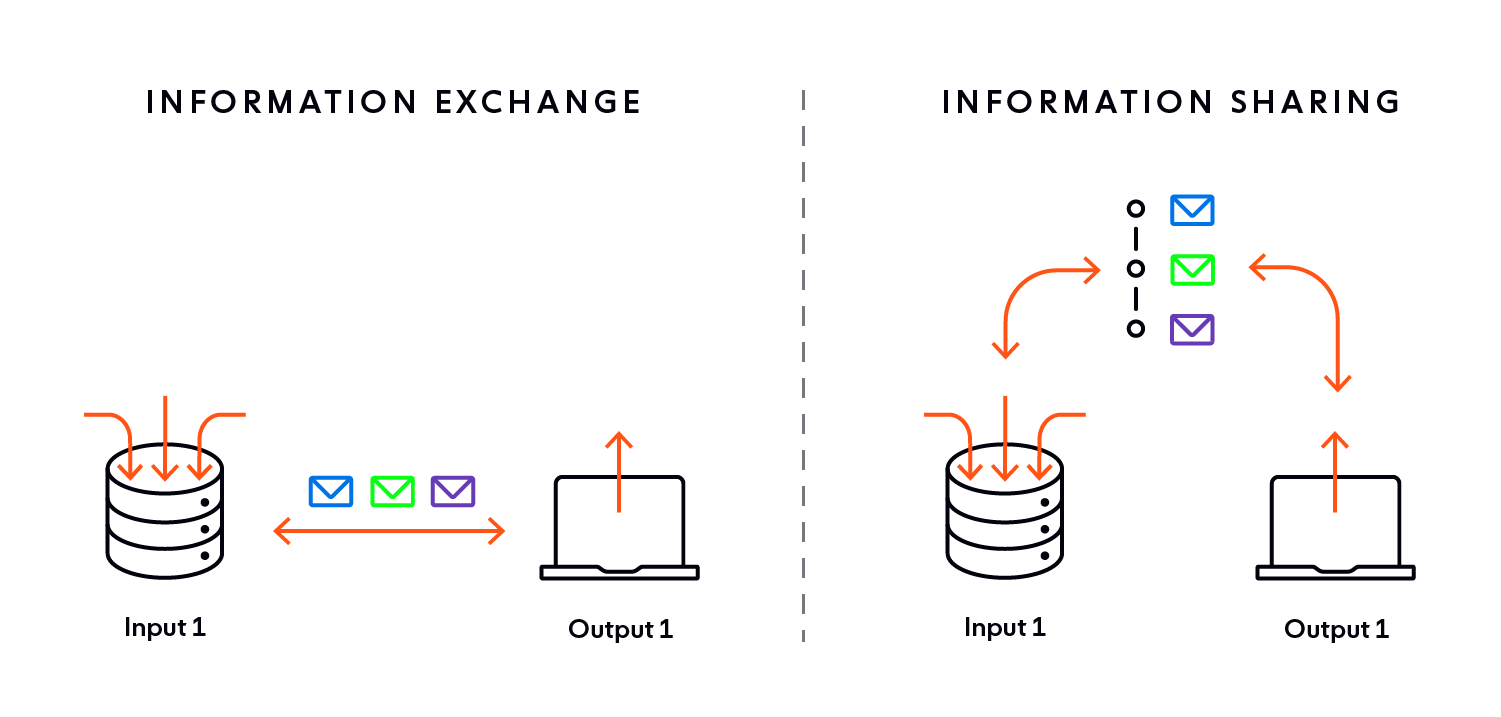

  • Pub/Sub marks a change in the paradigm of communication from point-to-point information exchange to information sharing on a common forum (topics or channels).

Copy link to clipboard

What are the benefits of the Pub/Sub model?

The Pub/Sub pattern brings many benefits to the table, including but not limited to:

  • Loose coupling between components, making your system more modular and flexible.

  • High scalability (in theory, Pub/Sub allows any number of  publishers to communicate with any number of subscribers).

  • Language-agnostic and protocol-agnostic, which makes it straightforward and fast to integrate Pub/Sub into your tech stack.

  • Asynchronous, event-driven communication that’s ideal for realtime, low-latency apps.

Learn more about the benefits of Pub/Sub

Copy link to clipboard

Situations where Pub/Sub is a bad choice

While Pub/Sub is a useful communication pattern in many scenarios, there are situations where it might not be the best choice. Here are a few examples:

  • Overkill for simpler systems and small-scale applications that only need to communicate with a few other components or services.

  • Not suitable for audio and video streaming.

  • Inappropriate for periodic or background tasks.

  • Not ideal for non-event-driven systems and use cases where you need synchronous communication.

Learn more about scenarios where you shouldn’t use Pub/Sub
